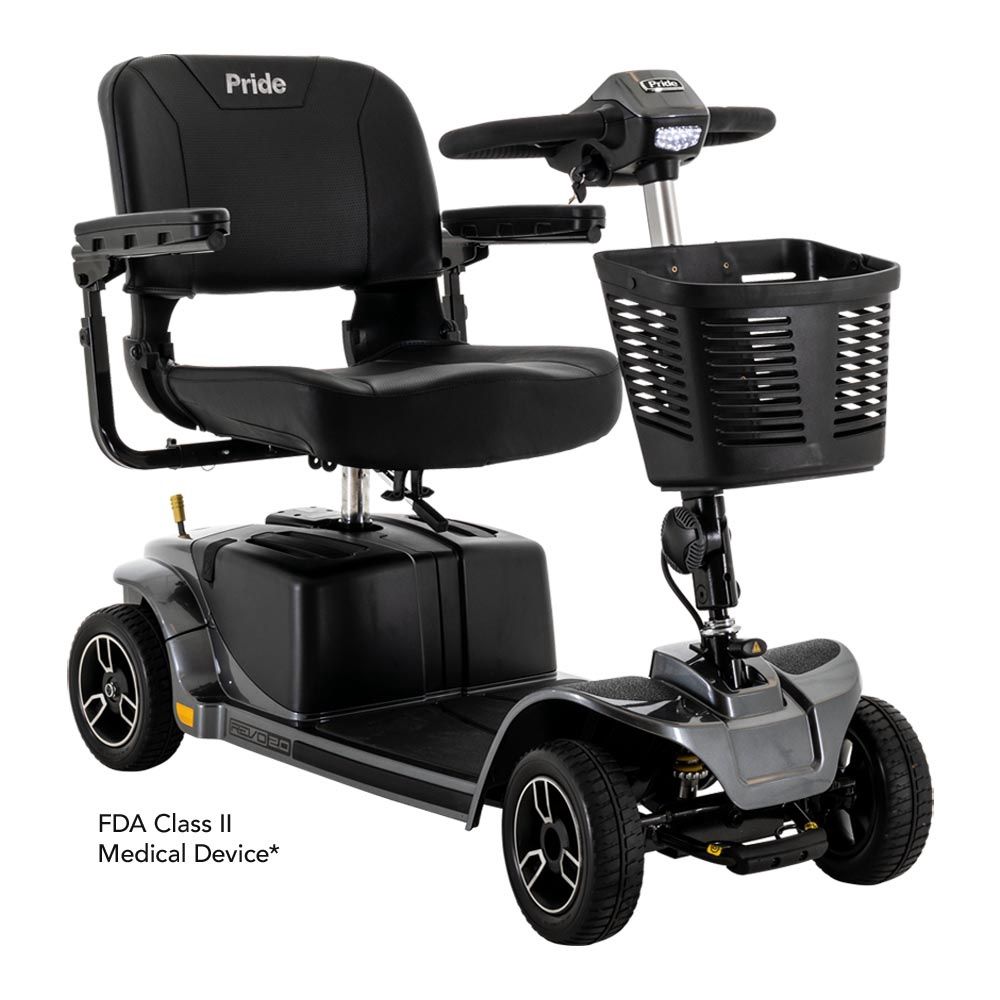

Revo™ 2.0 4 Wheel (S67)

Experience the Revo 2.0, a new class of scooter that combines an array of features into one great package. Tough and built to last, the Revo 2.0 offers rugged dependability you expect from luxury mid-size scooters. Comfort-Trac Suspension (CTS) ensures a smooth and comfortable ride over varied terrain. Experience convenient, feather-touch disassembly for portability that is comparable to our Travel Mobility line. Enjoy speeds up to 5.2 mph. Ride on with the Revo 2.0!

• Comfort-Trac front and rear suspension
• Durable and stylish rear bumper
• Easily accessible tie down points (for transport of unoccupied scooter)
• Easily adjustable tiller
• Easily charge the batteries on or off the unit
• Pride’s exclusive black, flat-free, non-scuffing tires
• Seat designed for extreme comfort
• Standard front basket
• Ultra heavy-duty drivetrain with 70 amp controller
• User-friendly console
• USB mobile device charging port

• Weight Capacity	400 lbs.
  Maximum Speed*	Up to 5.2 mph
  Ground Clearance	3W: 3.25” at side deck, 4W: 3.5” at side deck
  Turning Radius**	3W: 40”, 4W: 52”
  Overall Length**	3W: 46”, 4W: 47”
  Overall Width	20.75”
  Seat-to-Ground Height	22”-23.5”
  Seat-to-Deck Height	15”-16.5”
  Front Tires	3W: 3” x 8”, 4W: 3” x 9”
  Rear Tires	3” x 9”
  Suspension Type	Front and rear (CTS)
  Range Per Charge*	3W: Up to 17.4 miles (200 lbs.), Up to 12.8 miles (400 lbs.) 4W: Up to 17.8 miles (200 lbs.), Up to 14.8 miles (400 lbs.)
  Total Weight with Batteries**	3W: 170 lbs.; 4W: 182 lbs.
  Heaviest Piece When Disassembled**	3W: 48 lbs. (rear section), 4W: 57 lbs. (front section)
  Standard Seating	Type: Compact, foldable Dimensions: 20” width, 18” depth, 27.25 lbs. weight
  Drive System	Rear-wheel drive sealed transaxle with 24-volt DC motor
  Braking System	Regenerative and electromechanical
  Battery Requirements	Size: (2) U1 batteries; 25 lbs. each
  Battery Charger	3.5-amp, off-board
